Rugged Process Water Immersion Heater with 2 1-2"NPT Fitting
MTS-3 Series
PLACE ORDER - Stainless Steel Wetted Construction
- 120, 208, 240, 480V 1 and 3 Phase Power
- Reliable Heater Design
- General Purpose Enclosure, NEMA-1 Rated and UL Listed
Description
Description
Please Note: This immersion heater should be used with an approved temperature control device to assuresafe operation. See Section P for our selection of process controllers.

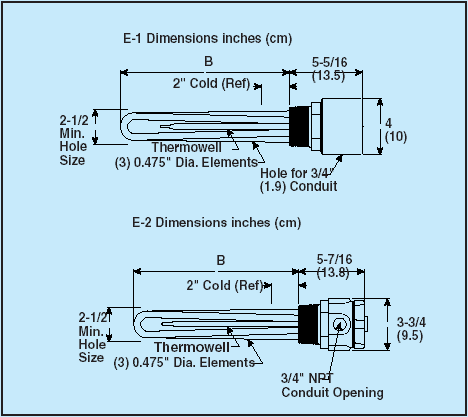

| kW | Volts | W/in2 | No. Htg.
Elem. | Dim. B
in (cm) | E1 General Purpose Enclosure1 | E2 Moisture Res/Explos. Res.2 |
| Model No. | Wt.
Ib (kg) | Model No. | Wt.
Ib (kg) |
| 3 | 120 | 51 | 3 | 6 7/8 (17) | MTS-330A/120V | 5(2) | MTS-330E2/120V | 8 (4) |
| 3 | 208 | 51 | 3 | 6 7/8 (17) | MTS-330A/208V/* | 5(2) | MTS-330E2/208V/* | 8 (4) |
| 3 | 240 | 51 | 3 | 6 7/8 (17) | MTS-330A/240V/* | 5(2) | MTS-330E2/240V/* | 8 (4) |
| 3 | 480 | 51 | 3 | 6 7/8 (17) | MTS-330A/480V/* | 5(2) | MTS-330E2/480V/* | 8 (4) |
| 4.5 | 120 | 48 | 3 | 10 7/8 (28) | MTS-345A/120V | 6(3) | MTS-345E2/120V | 9 (4) |
| 4.5 | 208 | 48 | 3 | 10 7/8 (28) | MTS-345A/208V/* | 6(3) | MTS-345E2/208V/* | 9 (4) |
| 4.5 | 240 | 48 | 3 | 10 7/8 (28) | MTS-345A/240V/* | 6(3) | MTS-345E2/240V/* | 9 (4) |
| 4.5 | 480 | 48 | 3 | 10 7/8 (28) | MTS-345A/480V/* | 6(3) | MTS-345E2/480V/* | 9 (4) |
| 6 | 120 | 48 | 3 | 16 7/8 (43) | MTS-360A/120V | 6(3) | MTS-360E2/120V | 9 (4) |
| 6 | 208 | 48 | 3 | 16 7/8 (43) | MTS-360A/208V/* | 6(3) | MTS-360E2/208V/* | 9 (4) |
| 6 | 240 | 48 | 3 | 16 7/8 (43) | MTS-360A/240V/* | 6(3) | MTS-360E2/240V/* | 9 (4) |
| 6 | 480 | 48 | 3 | 16 7/8 (43) | MTS-360A/480V/* | 6(3) | MTS-360E2/480V/* | 9 (4) |
| 7.5 | 208 | 53 | 3 | 18 11/16 (49) | MTS-375A/208V/* | 6(3) | MTS-375E2/208V/* | 9 (4) |
| 7.5 | 240 | 53 | 3 | 18 11/16 (62) | MTS-375A/240V/* | 6(3) | MTS-375E2/240V/* | 9 (4) |
| 7.5 | 480 | 53 | 3 | 18 11/16 (62) | MTS-375A/480V/* | 6(3) | MTS-375E2/480V/* | 9 (4) |
| 9 | 208 | 47 | 3 | 24 (61) | MTS-390A/208V/* | 7(3) | MTS-390E2/208V/* | 10 (5) |
| 9 | 240 | 47 | 3 | 24 (61) | MTS-390A/240V/* | 7(3) | MTS-390E2/240V/* | 10 (5) |
| 9 | 480 | 47 | 3 | 24 (61) | MTS-390A/480V/* | 7(3) | MTS-390E2/480V/* | 10 (5) |
| 12 | 208 | 46 | 3 | 31 7/8 (81) | †MTS-3120A/208V/* | 9 (4) | †MTS-3120E2/208V/* | 12 (5) |
| 12 | 240 | 46 | 3 | 31 7/8 (81) | †MTS-3120A/240V/* | 9 (4) | †MTS-3120E2/240V/* | 12 (5) |
| 12 | 480 | 46 | 3 | 31 7/8 (81) | MTS-3120A/480V/* | 9 (4) | MTS-3120E2/480V/* | 12 (5) |
| 15 | 208 | 46 | 3 | 39 3/8 (101) | †MTS-3150A/208V/* | 10 (5) | †MTS-3150E2/208V/* | 13 (6) |
| 15 | 240 | 46 | 3 | 39 3/8 (101) | †MTS-3150A/240V/* | 10 (5) | †MTS-3150E2/240V/* | 13 (6) |
| 15 | 480 | 46 | 3 | 39 3/8 (101) | MTS-3150A/480V/* | 10 (5) | MTS-3150E2/480V/* | 13 (6) |
| 18 | 208 | 51 | 3 | 46 7/8 (118) | †MTS-3180A/208V/* | 12 (5) | †MTS-3180E2/208V/* | 15 (7) |
| 18 | 240 | 51 | 3 | 46 7/8 (118) | †MTS-3180A/240V/* | 12 (5) | †MTS-3180E2/240V/* | 15 (7) |
| 18 | 480 | 51 | 3 | 46 7/8 (118) | MTS-3180A/480V/* | 12 (5) | MTS-3180E2/480V/* | 15 (7) |
/*Insert the suffix “3P” to the model number for 3 phase power.
1 Heaters with General Purpose Enclosures are UL Listed and CSA Certified except models with † (exceeds 48 amps).
2 Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas. Except models with † (exceeds 48 amps). Anemometer | Automation | Accelerometers | Calibrator | Cartridge Heaters | Chart Recorders | Cryogenics | Custom Pressure Transducers | Data Loggers | Data Acquisition | Dial Thermometers | Fiber Optics | Fiber Optic Temperature Measurement | Flexible Heaters | Flow Meters | Glass Bulb Thermometers | Grippers | Heaters | Humidity Measurement | Integrated Circuit Sensors | Immersion Heaters | Infrared Thermometers | Level Measurement | Load Cells | M12 Temperature Connectors | Magnetic Flow Meter | Panel Meter | PID Controllers | pH meter | Pressure Gauges | Pressure Transducers | Pressure Transmitters | Rotameters | RTD | Remote Process Monitoring | Sanitary Sensors | Signal Conditioners | Stepper Motors | Strain Gages | Strip Heaters | Temperature Controllers | Temperature Labels | Temperature Measurement | Temperature Sensor Manufacturing | Temperature Sensors | Temperature Transmitters | Thermal Imagers | Thermistors | Thermocouple | Thermocouple Wire | Thermowell | Ultrasonic Flow Meters | Vortex Flow Meter | Wireless Sensors
