Load Buttons and Rod Ends for Metric Load Cells
MLBC, MREC
PLACE ORDER - Insures Proper Loading and Helps Prevent Damage

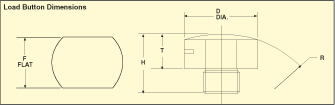

- Load Buttons for Compression Applications

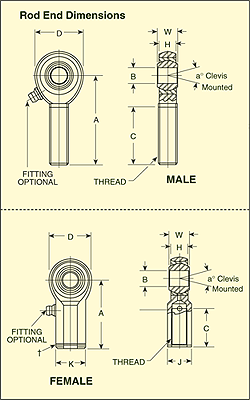

- Rod Ends for Tension Applications
Description
Description
LOAD CELL OPTIONS (Limited Models Only)
Temperature Compensation:
"-TC1" Extended compensated range
-46 to 93°C (-50 to 200°F) not exceeding operating range ..... $50
"-TC2"-46 to 163°C (-50 to 325°F) .................................... 225
Additional cable Length:
4 conductor PVC ................................................. $2.00/ft
4 conductor PTFE ................................................. 4.50/ft
6 conductor PVC .................................................. 2.75/ft
6 conductor PTFE ................................................. 6.50/ft
Mating Connectors:
PT06F10-6S ........................................................ $26.50
PT06A10-6S ..........................................................18.00
Calibration/Recalibration: (standard on most models)
"NC5" 5 point calibration ....................................... $160
0%, 50%, 100%, 50%, 0% FS
Extra calibration points .......................................... $25/point
Built-In Amplifiers:
0 to 5 Vdc ........................................................... $175
4 to 20 mA ........................................................... 195
In-Line Amplifiers: Consult Engineering
METRIC LOAD BUTTONS AND ROD ENDS
For full product specifications and dimensions click on the "SPECS" link above.
