Rugged Process Water Immersion Heater with 2" NPT Fitting
ARMTS-2 Series
PLACE ORDER - All Passivated Stainless Steel Construction: Ideal for Mild Acid or Alkaline Solutions
- Integral Thermostat
- 208, 240, or 480 Vac, 1 phase
- 43 to 51 W/in2
Description
Description
Please Note: This integral thermostat functions as a temperature control only. This is nota fail safe device. An approved pressure and/or temperature control should be used with these heatersto assure safe operation. See Section P for our selection of control devices
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualifiedpersonnel. See inside back cover for additional warning.
| kW | W/in2 | No. Htg.
Elem. | Dim.B
in(cm) | T2 Temp. Range (60-250°F)
Model No. | T1 Temp.Range (0-100°F)
Model No. | Wt.
Ib(kg) |

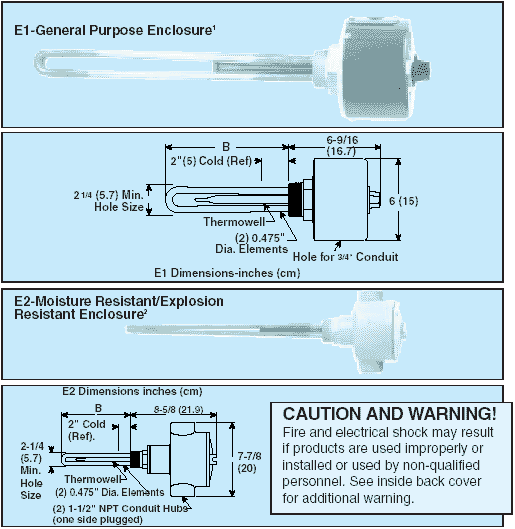

| ARMTS-2 Series with E1 General Purpose Enclosure1 |
| 2 | 51 | 2 | 71/2 (19) | ARMTS-2205-3/** | ARMTS-2205-3T1/** | 6 (3) |
| 2 | 47 | 2 | 9(23) | ARMTS-2255/* | ARMTS-2255T1/* | 7 (3) |
| 3 | 43 | 2 | 111/2 (29) | ARMTS-2305/** | ARMTS-2305T1/** | 7 (3) |
| 4 | 44 | 2 | 171/2 (44) | ARMTS-2405/** | ARMTS-2405T1/** | 7 (3) |
| 5 | 45 | 2 | 19 (48) | ARMTS-2505/* | ARMTS-2505T1/* | 8 (4) |
| 6 | 46 | 2 | 241/2 (62) | ARMTS-2605/* | ARMTS-2605T1/* | 8 (4) |
| 7 | 46 | 2 | 271/2 (70) | ARMTS-2705/* | ARMTS-2705T1/* | 9 (4) |
| 10 | 46 | 2 | 40 (102) | ARMTS-21005/* | ARMTS-21005T1/* | 10 (5) |
| 12 | 46 | 2 | 48 (122) | ARMTS-21205/* | ARMTS-21205T1/* | 11 (4) |
| ARMTS-2 with Type E2 Moisture Resistant/Explosion Resistant Enclosure2 |
| 2 | 51 | 2 | 7 1/2 (19) | ARMTS-2205-3E2/** | ARMTS-2205-3E2T1/* | 12 (5) |
| 2.5 | 47 | 2 | 9 (23) | ARMTS-2255E2/* | ARMTS-2255E2T1/* | 13 (6) |
| 3 | 43 | 2 | 11 1/2 (29) | ARMTS-2305E2/** | ARMTS-2305E2T1/** | 13 (6) |
| 4 | 44 | 2 | 17 1/2 (44) | ARMTS-2405E2/** | ARMTS-2405E2T1/** | 13 (6) |
| 5 | 46 | 2 | 19 (48) | ARMTS-2505E2/* | ARMTS-2505E2T1/* | 14 (6) |
| 6 | 46 | 2 | 24 1/2 (62) | ARMTS-2605E2/* | ARMTS-2605E2T1/* | 14 (6) |
| 7 | 46 | 2 | 27 1/2 (70) | ARMTS-2705E2/* | ARMTS-2705E2T1/* | 15 (7) |
| 10 | 46 | 2 | 40 (102) | ARMTS-21005E2/* | ARMTS-21005E2T1/* | 16 (7) |
| 12 | 46 | 2 | 48 (122) | ARMTS-21205E2/* | ARMTS-21205E21/* | 17 (7) |
/*Designate voltage, i.e., insert 240 for 240 Vac or 480 for 480 Vac.
/**Designate voltage, i.e., insert 208 for 208 Vac, 240 for 240 Vac or 480 for 480 Vac.
1 Heaters with General Purpose Enclosures are UL Listed and CSA Certified.
2 Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C Certified. Anemometer | Automation | Accelerometers | Calibrator | Cartridge Heaters | Chart Recorders | Cryogenics | Custom Pressure Transducers | Data Loggers | Data Acquisition | Dial Thermometers | Fiber Optics | Fiber Optic Temperature Measurement | Flexible Heaters | Flow Meters | Glass Bulb Thermometers | Grippers | Heaters | Humidity Measurement | Integrated Circuit Sensors | Immersion Heaters | Infrared Thermometers | Level Measurement | Load Cells | M12 Temperature Connectors | Magnetic Flow Meter | Panel Meter | PID Controllers | pH meter | Pressure Gauges | Pressure Transducers | Pressure Transmitters | Rotameters | RTD | Remote Process Monitoring | Sanitary Sensors | Signal Conditioners | Stepper Motors | Strain Gages | Strip Heaters | Temperature Controllers | Temperature Labels | Temperature Measurement | Temperature Sensor Manufacturing | Temperature Sensors | Temperature Transmitters | Thermal Imagers | Thermistors | Thermocouple | Thermocouple Wire | Thermowell | Ultrasonic Flow Meters | Vortex Flow Meter | Wireless Sensors
