Solution Water Immersion Heater - 2½" NPT Fitting and 3 Element Construction
MTI-3 Series
PLACE ORDER - NEMA 1 Rated, E1 General Purpose Enclosure or Moisture Resistant/Explosion Resistant Enclosure
- Premium Quality Stainless Steel Screw Plug
- 240 and 480V, 3 Phase
- 3 to 18 kW
- Incoloy Sheath Provides Excellent Corrosion Resistance for Solution Water Applications
Description
Description
The MTI-3 Series screw plug immersion heaters are designed fordirect contact heating in solution water applications.
Please Note: This immersion heater should be used with an approved temperature control device to assuresafe operation. See Temperature Section for our selection of process controllers.
SPECIFICATIONS
Wattage: 3 to 18 kW
Power: 240, or 480 V, 3 phase
Watt Density: 46-53 W/in2
Sheath: 0.475"diameter Incoloy
Screw Plug: 21/2" NPT Stainless Steel
Enclosures: E1 General Purpose, NEMA-1 rated, or type E2 moistureresistant/explosion resistant enclosure.

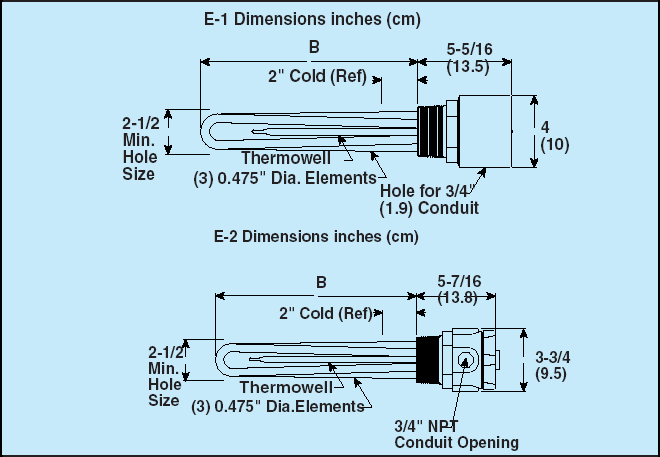

| kW | W/in2 | No. Htg.
Elem. | Dim. B
in (cm) | E1 General Purpose Enclosure1 | E2 Moisture Resis/Explosion Resis.2 |
| Model No. | Wt.
Ib (kg) | Model No. | Wt.
Ib (kg) |
| 3 | 51 | 3 | 6 7/8 (17) | MTI-330A/* | 5 (2) | MTI-330E2/* | 8 (3) |
| 4.5 | 48 | 3 | 10 7/8 (28) | MTI-345A/* | 6 (3) | MTI-345E2/* | 9 (3) |
| 6 | 48 | 3 | 17 1/8 (43) | MTI-360A/* | 6 (3) | MTI-360E2/* | 9 (3) |
| 7.5 | 53 | 3 | 19 1/8 (49) | MTI-375A/* | 6 (3) | MTI-375E2/* | 9 (3) |
| 9 | 47 | 3 | 24 1/2 (62) | MTI-390A/* | 7 (3) | MTI-390E2/* | 10 (4) |
| 12 | 46 | 3 | 32 1/2 (83) | MTI-3120A/* | 9 (4) | MTI-3120E2/* | 12 (4) |
| 15 | 46 | 3 | 39 3/8 (100) | MTI-3150A/* | 10 (5) | MTI-3150E2/* | 13 (4) |
| 18 | 51 | 3 | 47 3/8 (121) | MTI-3180A/* | 12 (5) | MTI-3180E2/* | 15 (5) |
/*Designate voltage, i.e., 240 for 240 Vac or 480 for 480 Vac.
1 Heaters with General Purpose Enclosures are UL Listed and CSA certified.
2 Heaters with Moisture Resistant/Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas. Anemometer | Automation | Accelerometers | Calibrator | Cartridge Heaters | Chart Recorders | Cryogenics | Custom Pressure Transducers | Data Loggers | Data Acquisition | Dial Thermometers | Fiber Optics | Fiber Optic Temperature Measurement | Flexible Heaters | Flow Meters | Glass Bulb Thermometers | Grippers | Heaters | Humidity Measurement | Integrated Circuit Sensors | Immersion Heaters | Infrared Thermometers | Level Measurement | Load Cells | M12 Temperature Connectors | Magnetic Flow Meter | Panel Meter | PID Controllers | pH meter | Pressure Gauges | Pressure Transducers | Pressure Transmitters | Rotameters | RTD | Remote Process Monitoring | Sanitary Sensors | Signal Conditioners | Stepper Motors | Strain Gages | Strip Heaters | Temperature Controllers | Temperature Labels | Temperature Measurement | Temperature Sensor Manufacturing | Temperature Sensors | Temperature Transmitters | Thermal Imagers | Thermistors | Thermocouple | Thermocouple Wire | Thermowell | Ultrasonic Flow Meters | Vortex Flow Meter | Wireless Sensors
