Accessories: Standard Size Round Pin Thermocouple Connector- Wire Cable Clamps- Strain Relief- Grommets- Brass Crimp
OSTW-SC, OSTW-CC, GST-SC, DX, XBRLK, SSRT, PCLM,SF
PLACE ORDER - Crimp Bushing
- Wire Caddy
- Tube Clamps
- Strain Relief Tubing
- Cable Clamp Metal PCLM
- Cable Clamp Integral OSTW-CC
- Cable Clamp Integral OSTW-CC-125 upto 1/8"
- Cable Clamp Integral OSTW-CC-250 upto 1/4" BX
- Safety Clips
- Round Hole Panel Mounting Brackets
- Rubber Boots
- Grommets
- Fast Assembly Tool
Description
Description
Improved Cable Clamp Design:
Strain relief and cable clamp needs have traditionally been accomplished by a (legacy style) metal PCLM clamp with numerous small loose parts. Based on input from current users plus recent automation developments TC cable clamp design and assembly has greatly improved.
The OSTW-CC cable clamp has reduced the assembly time by 2/3's and made all the loose screws captive. Combined with a lower initial cost the OSTW-CC has proven to be a reliable economical choice when cable clamp strain relief is required.The OSTW-CC- ( )-125 clamp cap comes in all TC calibrations. The 5 pack contains all the parts required as a direct replacement for PCLM assembly items. Option -250- size for up to 1/4" BX cable clamp . For OEM quantity bulk packs contact OEM sales.

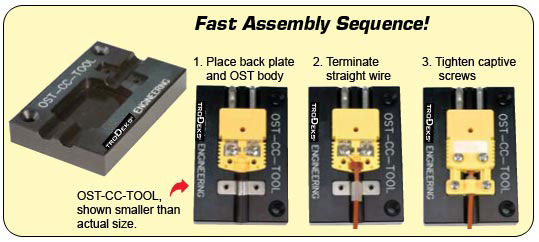

See the model OST-CC-TOOL Fast Assembly Sequence diagram below. This tool holds any OST series connector and the CC series clamp parts. This holding tool allows the technician to complete the connector and cable clamp assembly from the top side without holding the loose parts or turning the connector.
Complete TC connector OSTW-CC-( )-( ) with the integral cable clamp strain relief
Wire Caddy (Spool Cap) | Model No. | Compatible Connectors |
| OSTW-SC-(*) | USTW, OSTW, OST, HST, HSTW |
| GST-SC-(*) | GST |
*Insert thermocouple calibration: J, K, T, E, R/S, N or U (Uncompensated)
Dual Element Tube Clamp | Model No. | Compatible Connectors |
| DX-BRLK-(*) | USTW, OSTW, UST, OST, OGP, HST, HSTW |
*Insert probe diameter: “116” for 1/16", “18” for 1/8", “316” for 3/16", or “14” for 1/4"
Tube Clamp | Model No. | Compatible Connectors |
| X-BRLK-(*) | USTW, OSTW, UST, OST, OGP, GST, HST, HSTW, HGST |
*Insert probe diameter: “116” for 1/16 ", “18” for 1/8", “316” for 3/16", or “14” for 1/4"
Standard Strain Relief Tubing | Model No. | Compatible Connectors |
| SSRT-316-(*) | OST, OSTW, HST, HSTW, UST, USTW, OGP,
OTP, GST, HGST, DTC |
| SSRT-18-(*) |
| SSRT-332-(*) |
*Insert pkg quantity: select from 5, 10, 50, 100
Center number denotes tubing inside diameter: “316” for 3/16", “18” for 1/8", “332” for 3/32"
Cable Clamps | Model No. | Compatible Connectors |
| PCLM | USTW, OSTW, UST, OST, OGP, HST, HSTW |
| PCLM-DTC | DTC |
| PCLM-GST | GST, HGST |
Ferrite Cable Clamps | Model No. | Compatible Connectors |
| PCLM-FT | OST, OSTW, HST, HSTW, OGP, HGST, GST, OTP |
Safety Clips| Model No. | Compatible Connectors |
| SFCL | USTW, OSTW, UST, OST, OGP, OTP, GST, HST, HSTW, HGST |
Round Hole Panel Mounting Brackets| Model No. | Compatible Connectors |
| RSACL | USTW, OSTW, UST, OST, OGP, GST, HST, HSTW, HGST |
Panel Mounting Brackets| Model No. | Compatible Connectors |
| SACL | USTW, OSTW, UST, OST, OGP, GST, HST, HSTW, HGST |
Rubber Boots| Model No. | Compatible Connectors |
| SRB | USTW, OSTW, UST, OST, OGP, HST, HSTW |
| SRBS | USTW, OSTW, UST, OST, OGP, HST, HSTW |
